Classical V Belt Manufacturer
TRANSBELON manufactures wrapped classical V belts for standard industrial and agricultural drive systems, with ZM, A, B, C, D, E and F sections available.
- China B2B Good Quality Factory ，MOQ Only 50 pieces
- Length range from 343 mm to 17000 mm
- Stable pulley fit and power transmission
- OEM marking and export packaging available

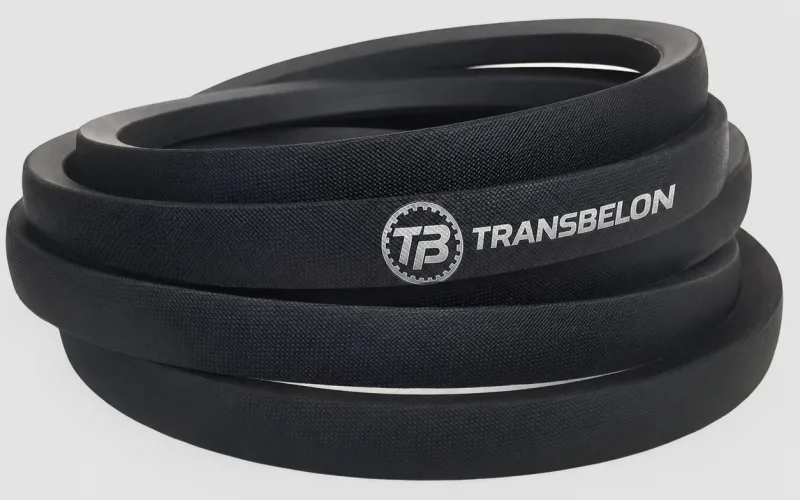

Classical V Belt for Standard Pulley Drives
When you need a regular wrapped rubber belt for a standard V-groove pulley drive, a Classical V Belt gives you a familiar and practical profile for mechanical power transmission.
A Classical V Belt uses a trapezoidal shape to sit firmly inside the pulley groove, helping the belt maintain contact with the drive surface during operation. Its wrapped outer surface also supports stable running in standard transmission systems.
For replacement work, you can select a Classical V Belt by matching the belt section, working length, pulley groove, and operating condition of your equipment.
Classical V Belt Type
Regular Wrapped Rubber V Belt
Pulley Match
Standard V-Groove Pulley Drive
Transmission Role
Mechanical Power Transmission
Classical V Belt Standard Sections
Use the table to check the standard Classical V Belt section, belt width, pitch width, height, length range, and belt angle.
| Type | Top Width b (mm) | Pitch Width (mm) | Height h (mm) | Length Range (mm) | Angle |
|---|---|---|---|---|---|
| ZM | 10 | 8.5 | 6 | 343–2478 | 40° |
| A | 13 | 11 | 8 | 381–9000 | 40° |
| B | 17 | 14 | 11 | 457–17000 | 40° |
| C | 22 | 19 | 14 | 700–17000 | 40° |
| D | 32 | 27 | 19 | 1900–17000 | 40° |
| E | 38 | 32 | 23 | 3000–17000 | 40° |
| F | 50 | / | 30 | 5000–17000 | 40° |
Size Matching Note
For replacement use, match your Classical V Belt by section type, working length, pulley groove, and equipment condition.
Special Profiles on Request
Some machines or regional replacement markets may use Classical V Belt profiles outside the main standard section range.
When your belt does not match a regular section, you can provide the belt marking, old sample, drawing, or machine information for profile confirmation. Availability depends on the required size, quantity, and production conditions.

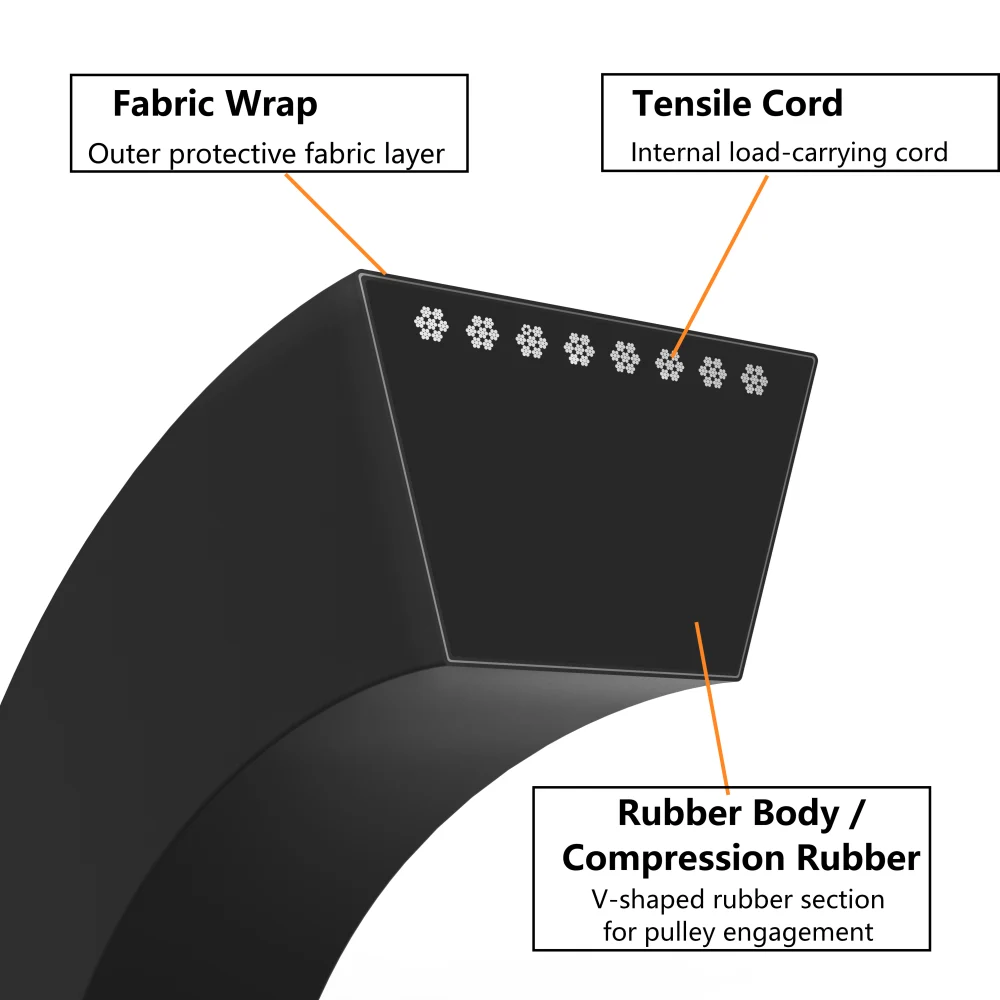

Wrapped Classical V Belt Construction
When you use a Classical V Belt in a standard V-groove pulley drive, the belt works through three key parts: the fabric wrap, the tensile cord, and the rubber body with compression rubber.
The fabric wrap covers the outer surface to help protect the belt and support pulley contact. The tensile cord is the internal load-carrying cord that helps control belt stretch and transmit tension during operation.
The rubber body and compression rubber form the V-shaped profile, helping the Classical V Belt sit properly in the pulley groove and transfer power through frictional contact.

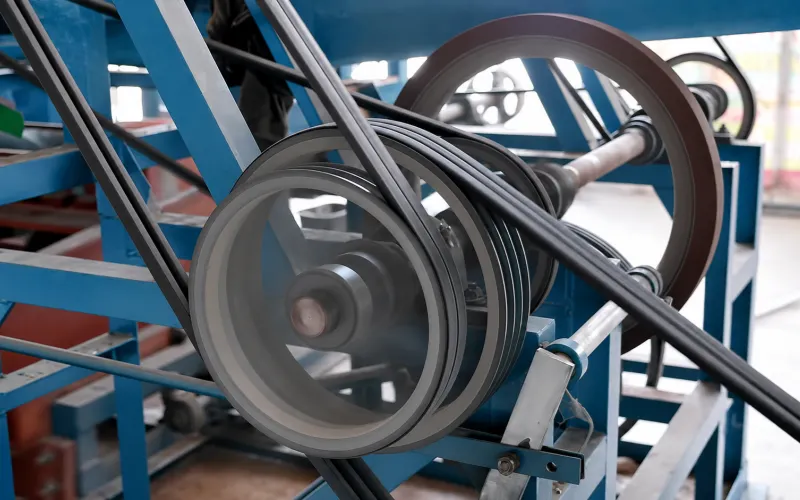

Where You Use a Classical V Belt
You can use a Classical V Belt in standard V-groove pulley drives where mechanical power needs to be transmitted between shafts through belt and pulley contact.
It is commonly applied in regular industrial transmission positions, multiple V-belt drive arrangements, replacement maintenance, and drive systems where heavier load or shock-load conditions need a correctly matched belt section and length.
For equipment-level applications such as pumps, fans, compressors, agricultural machines, woodworking machines, or crushers, the final use should be confirmed according to your actual market and product positioning.

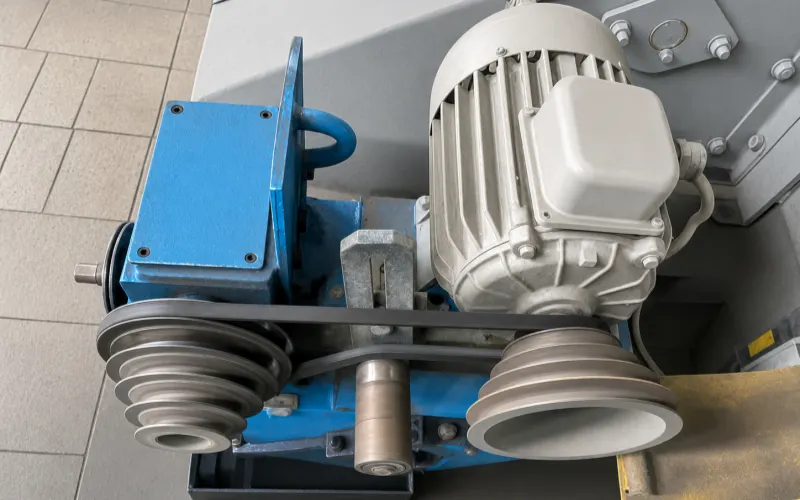

Standard V-Groove Drives
Use it in regular pulley systems that require stable belt contact.

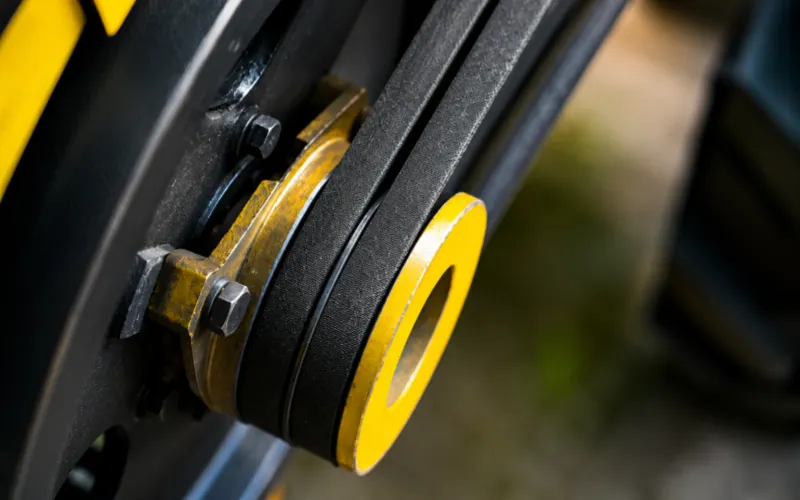

Multiple V-Belt Drives
Use it where several belts work together in one drive system.

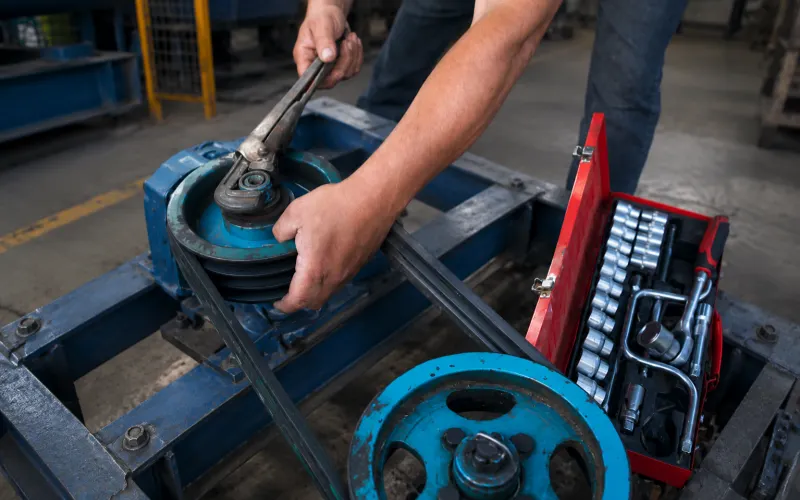

Replacement Maintenance
Use it to replace existing wrapped Classical V Belt profiles.

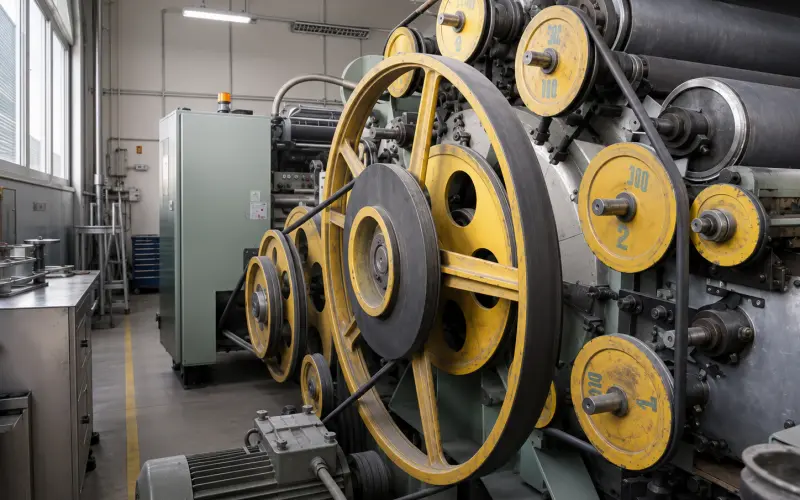

Heavy-Load Drive Positions
Load and shock conditions require proper belt matching.
Need a Classical V Belt Quote?
You only need to send 3 basic details: your belt model, one length measurement, and quantity. That is enough to start a Classical V Belt quote with Transbelon.
For length, you can provide the value you already have: outside length, inside length, or pitch length. If you need oil resistance, heat resistance, or other special requirements, add it as a short note.
Details Are Enough
No complex drawing required for initial confirmation.
Belt Model
ZM, A, B, C, D, E, F, or the marking on your old belt.
One Length Measurement
Outside length, inside length, or pitch length.
Quantity
Order quantity or estimated purchase quantity.
Oil resistance, heat resistance, or other working requirements.
OEM Options for Classical V Belt Buyers
Choose the cooperation method that fits your order: private-label supply based on Transbelon standard Classical V Belt products, or sample-based custom development for special replacement needs.
Logo & Packaging on Standard Belts
When you use Transbelon standard Classical V Belt products, you can customize the belt marking and packaging for your local market.
You can add your brand name, belt model, length information, batch code, sleeve design, carton label, or bulk packing requirement according to your order plan.
Brand Logo
Brand name, model, length, or batch code
Sleeve Packaging
Custom printed sleeve for distributor supply
Carton Label
Brand, size, quantity, and shipment information
Bulk Packing
Suitable for wholesale and replacement markets
Logo & Packaging on Standard Belts
When you have an old belt sample, special profile, or non-standard replacement requirement, you can send the sample, drawing, marking, or photos for technical confirmation.
Transbelon can review the belt profile, size, structure, and working requirement before confirming whether tooling, mold adjustment, or custom production is suitable.
Sample Review
Old belt, type, drawing, or photos
Profile Confirmation
Section shape, width, height, and fit
Tooling Evaluation
Mold or tooling requirement reviewed before production
Production Check
Quantity, structure, and application requirement confirmed

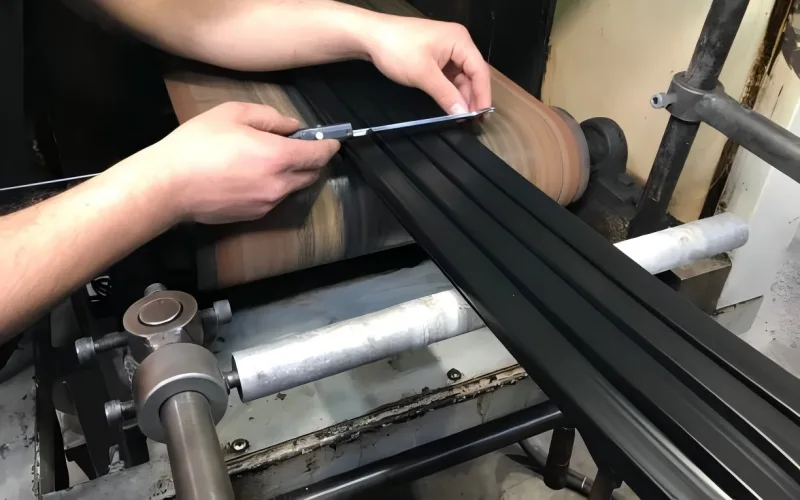

Quality Support for Classical V Belt Orders
Before shipment, Transbelon can check the key order details that directly affect delivery accuracy, including belt model, length, marking, quantity, and packaging.
These basic checks help you reduce common order problems such as wrong model delivery, unclear marking, length mismatch, or packing errors in Classical V Belt shipments.
